Tipper Pads for Tipper Lorries Available at Polymax

Oceń ten produkt jako pierwszy

Krótki opis

A large collection of tipper pads used to protect the chassis of tipping lorries.

Available in two types of metal as shown in the material column below: steel zinc plated (S) and aluminium (A).

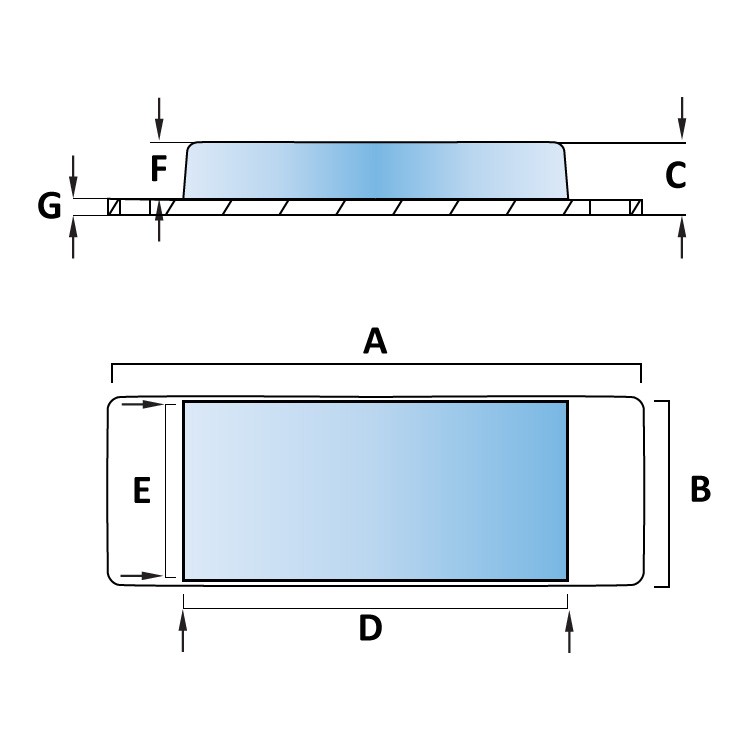

Tipper Pads Technical Drawing
nr katalogowy Profile Drawing A B C D E F G Bolt Mat Cena Ilość

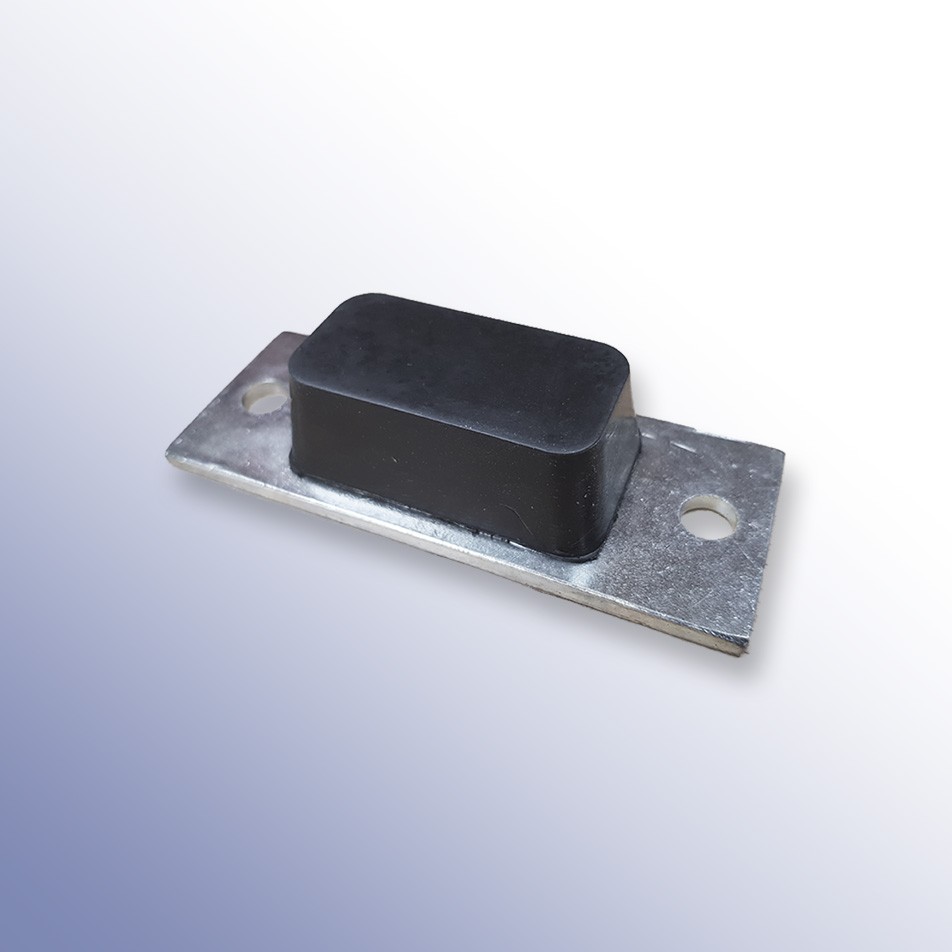

Steel Tipper Pad 84L x 32W x 19H DM8419M6-2 Steel Tipper Pad 84L x 32W x 19H 84321946251732 X M6S
34,24 zł

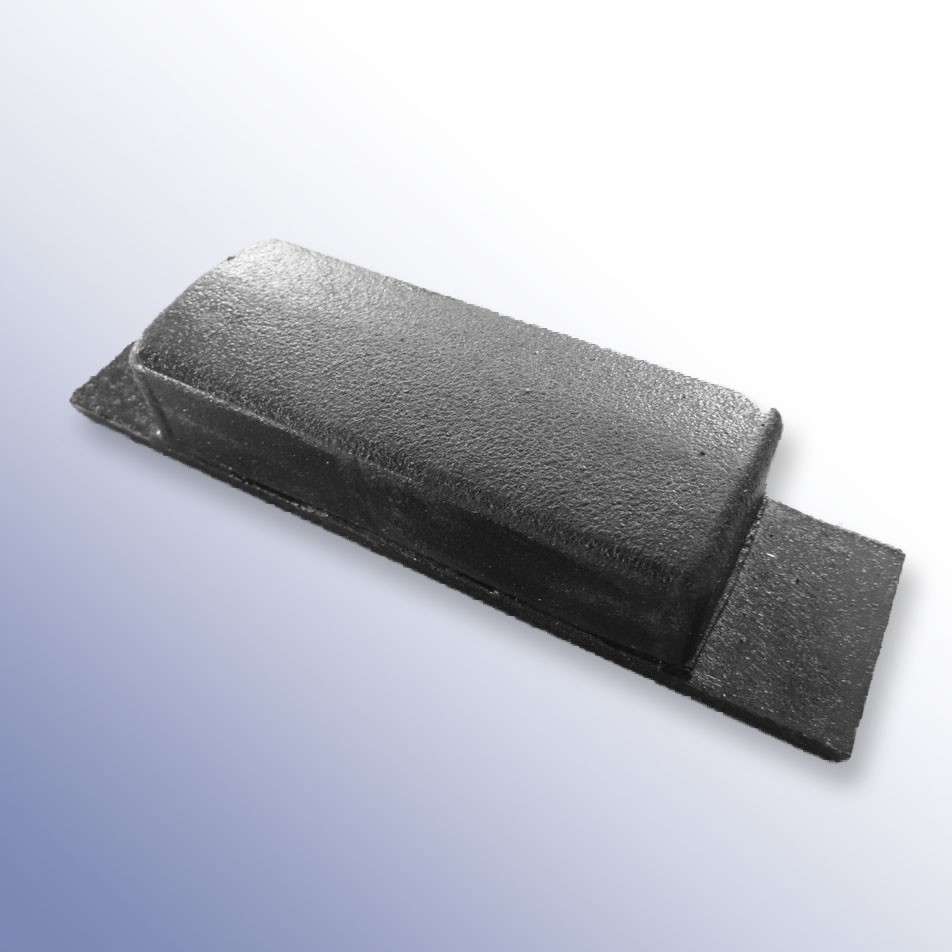

Steel Tipper Pad Coated 152L x 40W x 30H DM15240-3 Steel Tipper Pad Coated 152L x 40W x 30H 152403010040255NoneS
65,76 zł

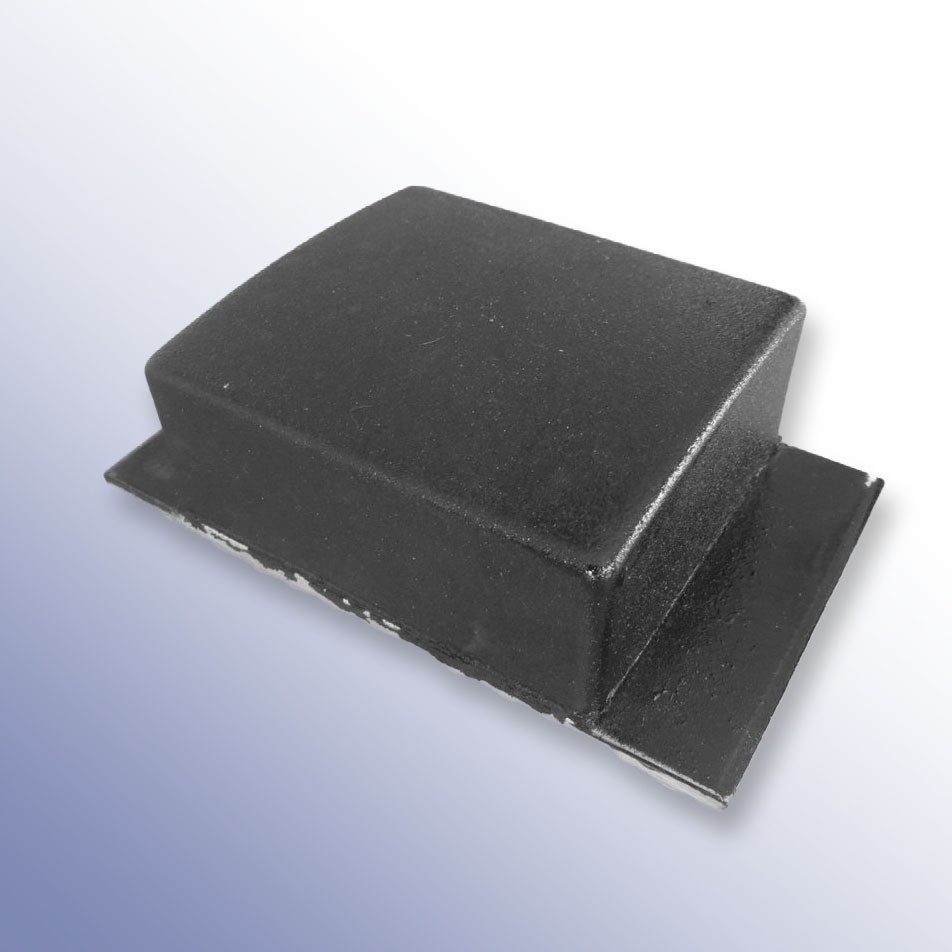

Aluminium Tipper Pad Coated 152L x 88W x 43H DM15275-3 Aluminium Tipper Pad Coated 152L x 88W x 43H 152884310088385NoneA
118,47 zł

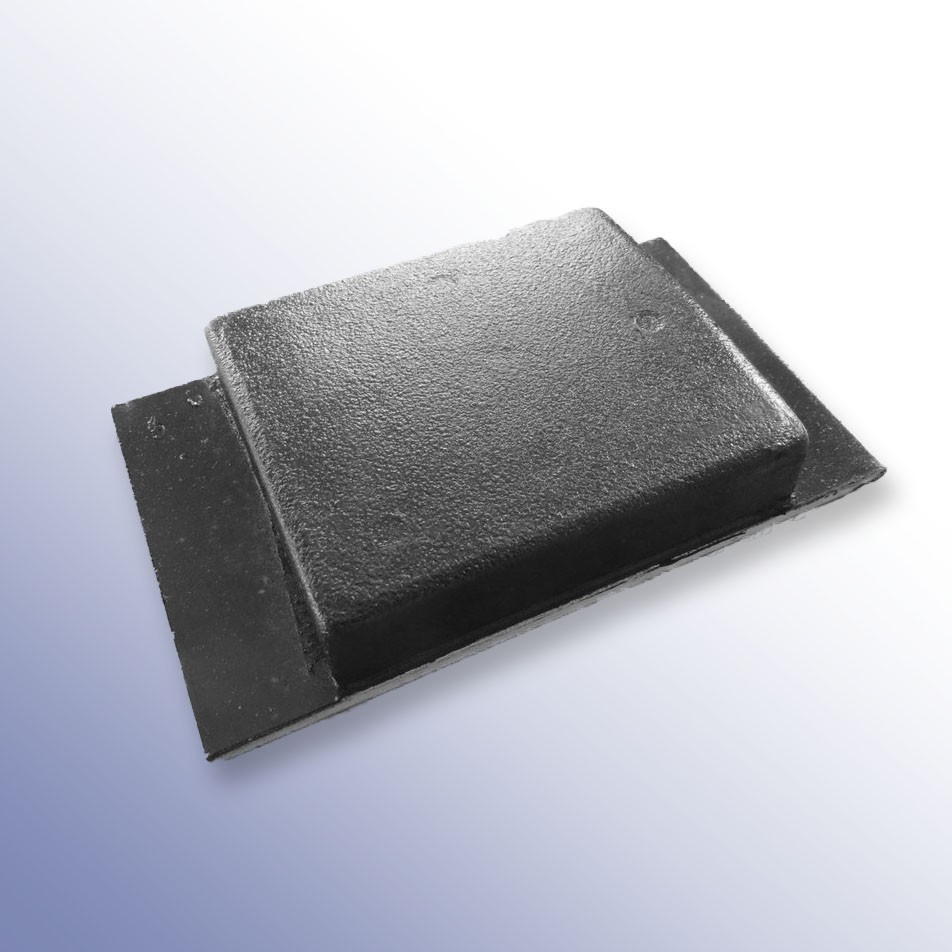

Aluminium Tipper Pad Coated 152L x 88W x 28H DM15288-3 Aluminium Tipper Pad Coated 152L x 88W x 28H 152882810086235NoneA
108,80 zł

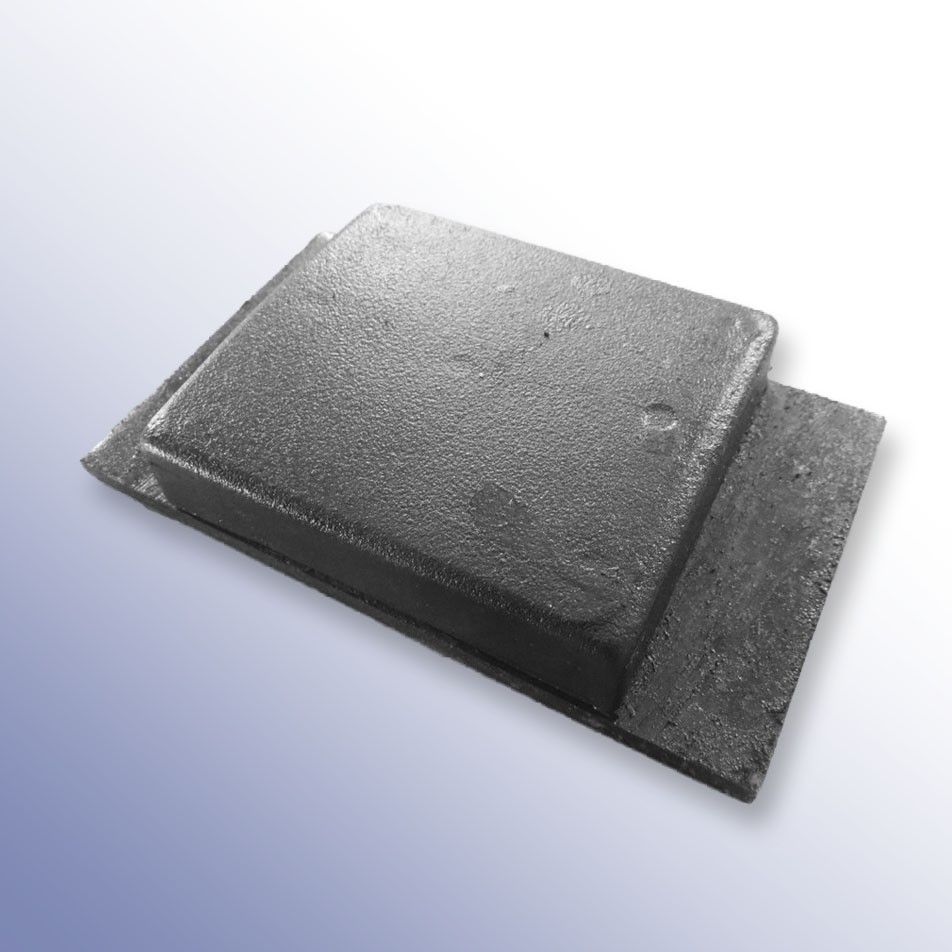

Steel Tipper Pad Coated 152L x 88W x 28H DM1528828-3 Steel Tipper Pad Coated 152L x 88W x 28H 152882810086226NoneS
108,80 zł

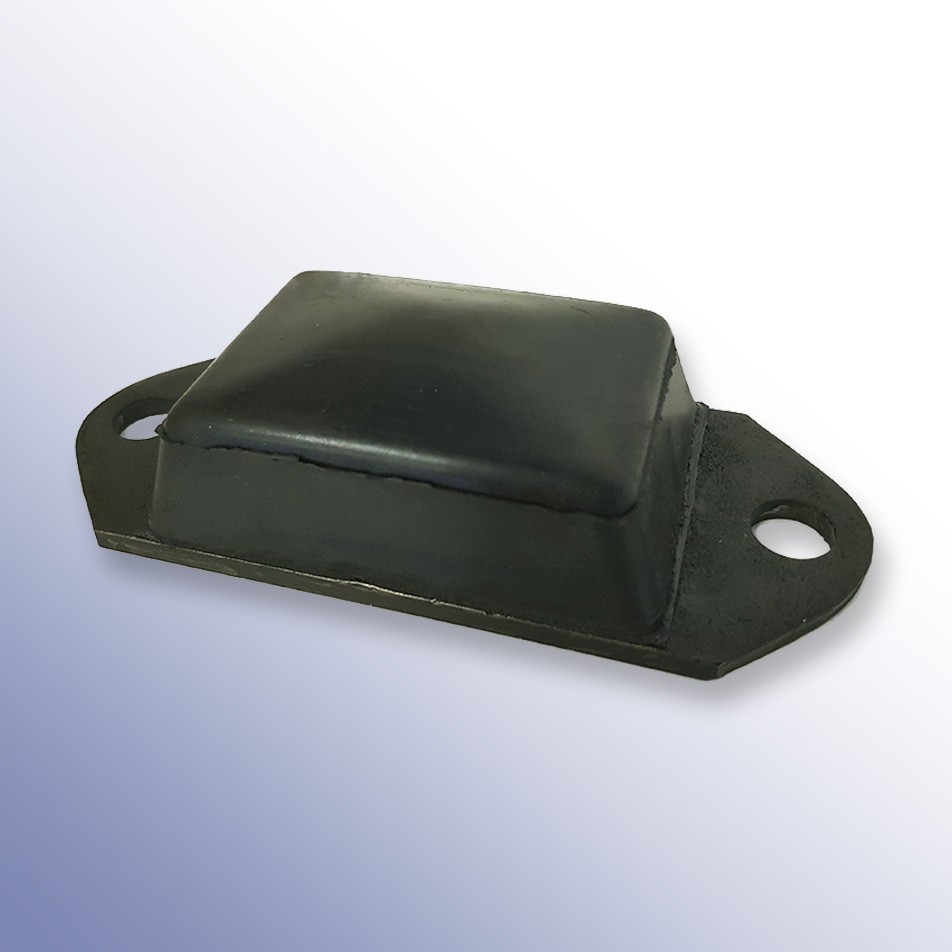

Steel Oval Tipper Pad Coated 153L x 62W x 40H DM15637M12-2 Steel Oval Tipper Pad Coated 153L x 62W x 40H 153624092623552 x M12S
123,31 zł

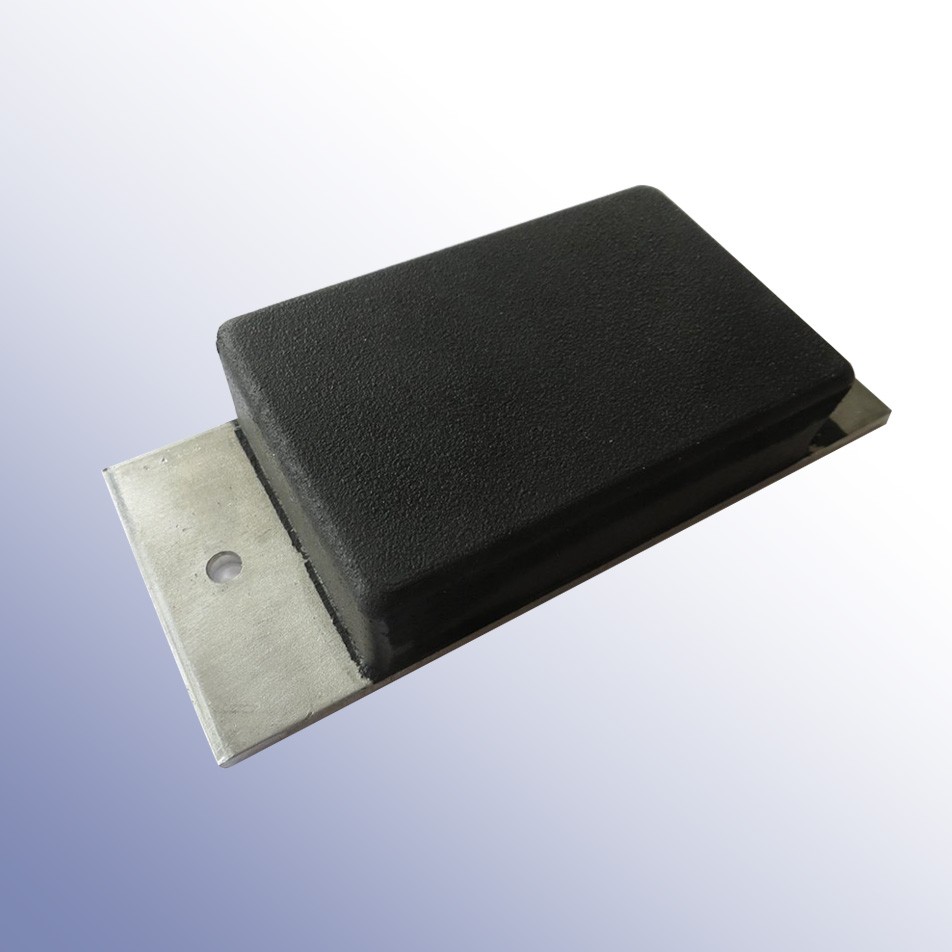

Aluminium Tipper Pad 180L x 75W x 34H DM18034-3 Aluminium Tipper Pad 180L x 75W x 34H 1807534115752952 x M8A
108,80 zł

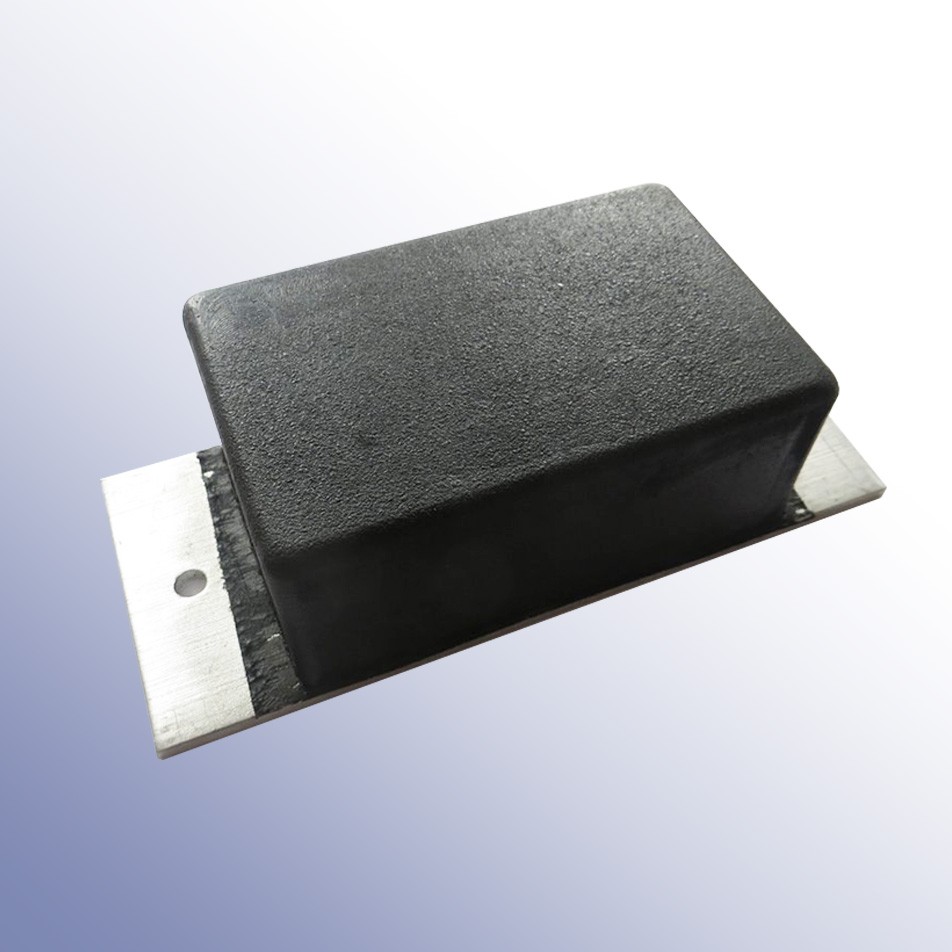

Aluminium Tipper Pad 180L x 75W x 46H DM18045M8-3 Aluminium Tipper Pad 180L x 75W x 46H 1807546115754642 x M8A
116,05 zł

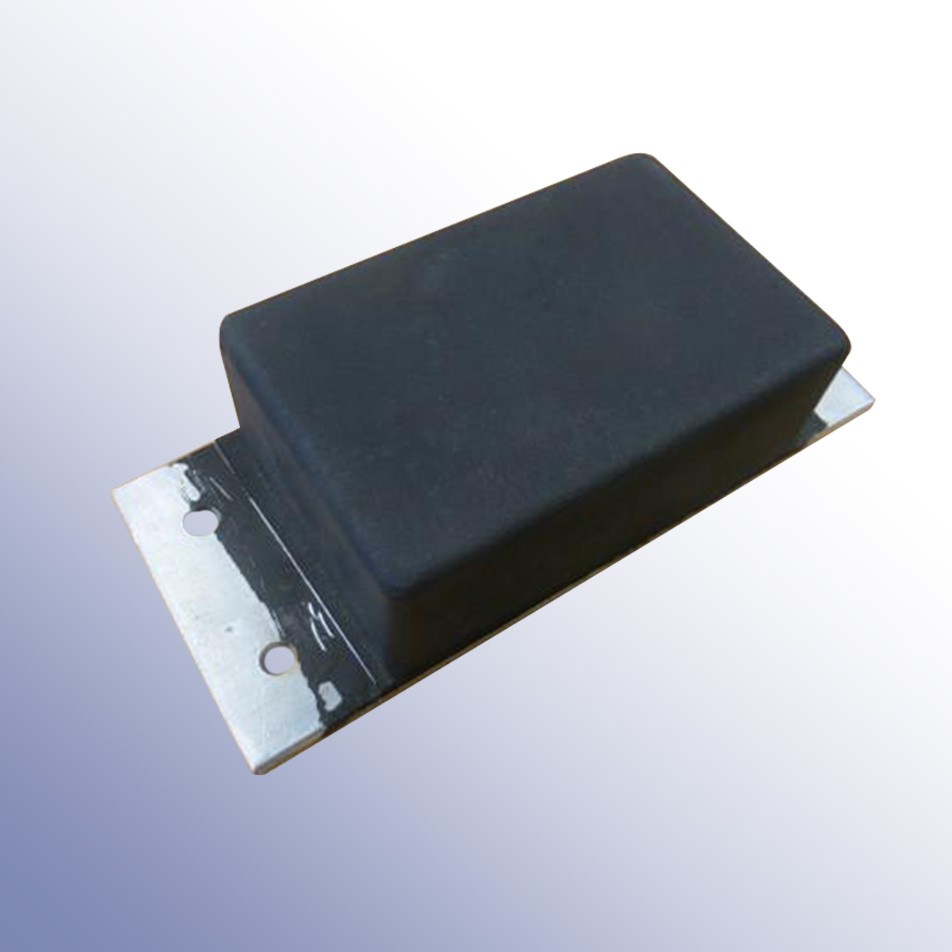

Aluminium Tipper Pad 180L x 75W x 45H DM18050-3 Aluminium Tipper Pad 180L x 75W x 45H 1807545115754054 x M8A
118,47 zł

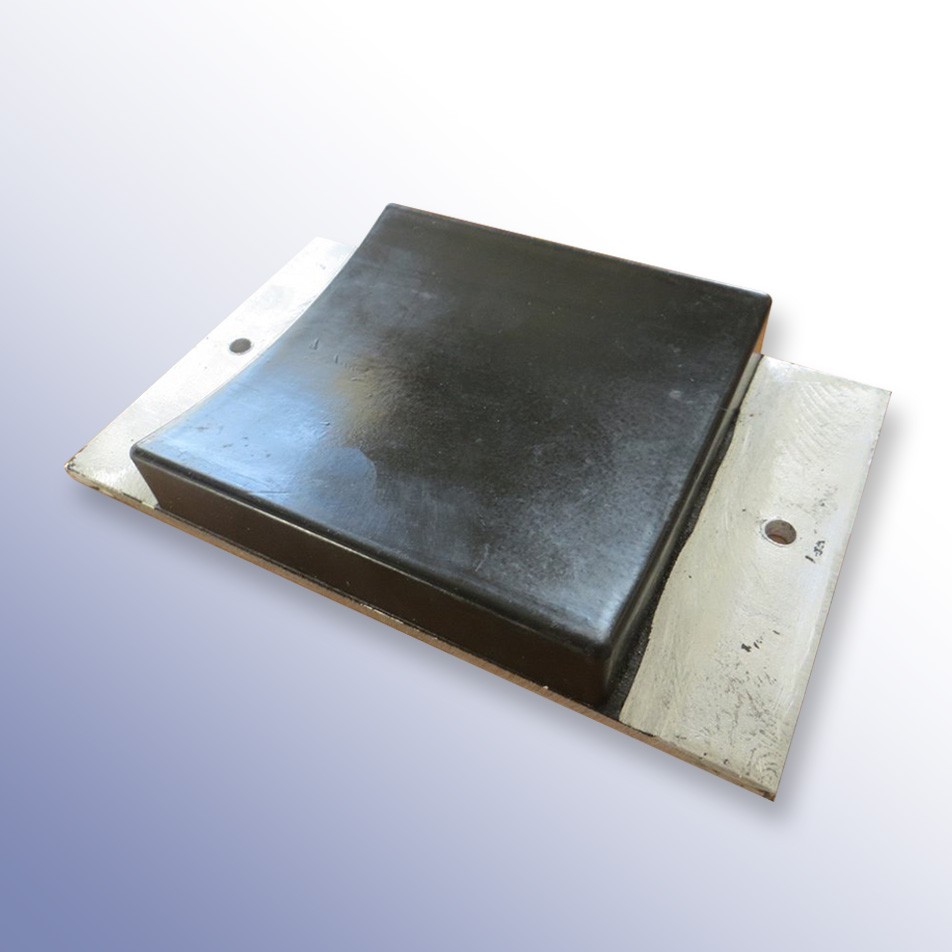

Aluminium Tipper Pad Concaved 190L x 115W x 20-26H DM190115-3 Aluminium Tipper Pad Concaved 190L x 115W x 20-26H 1901152012011214-2062 x M8A
101,55 zł

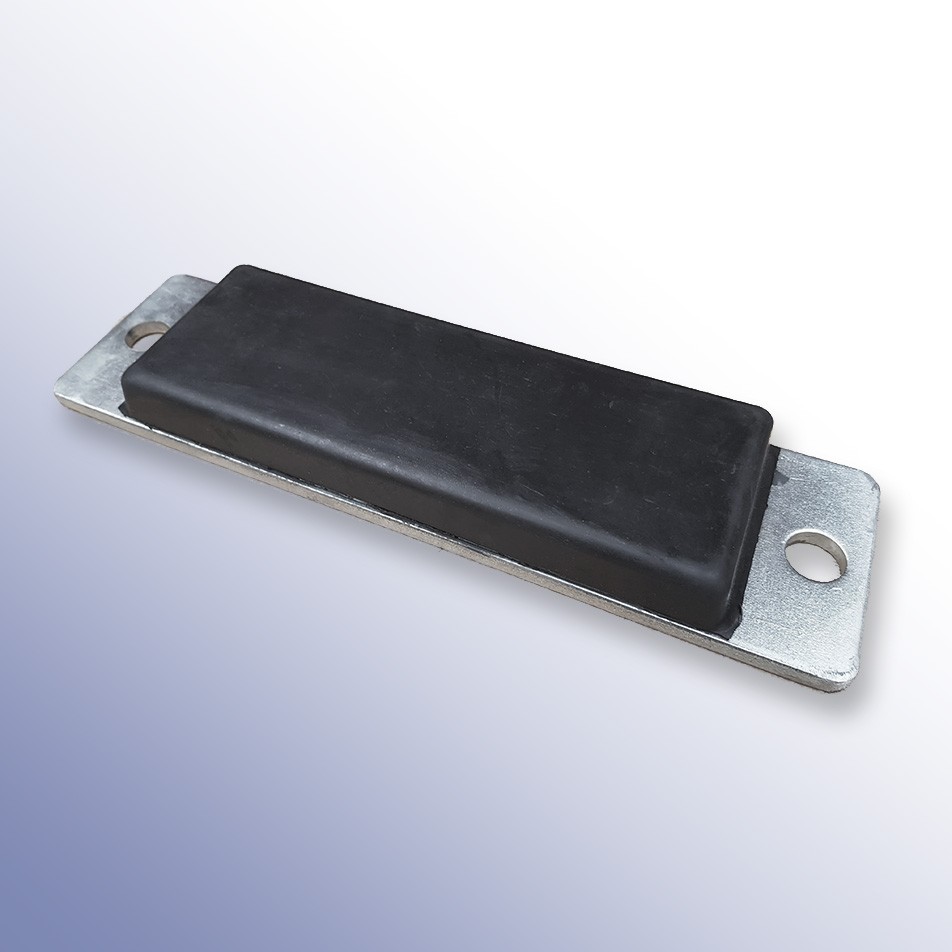

Steel Tipper Pad 270L x 71W x 25H DM27325M16-2 Steel Tipper Pad 270L x 71W x 25H 2707125203712052 x M16S
120,89 zł

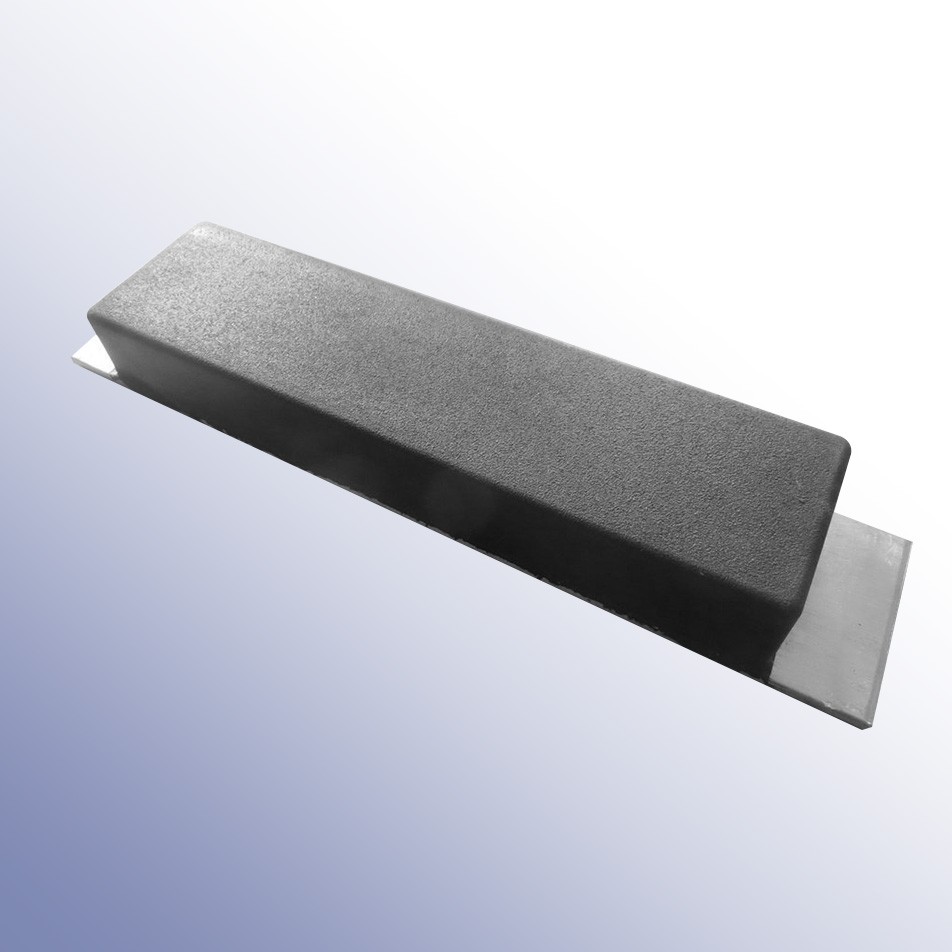

Aluminium Tipper Pad 355L x 75W x 44H DM35544-3 Aluminium Tipper Pad 355L x 75W x 44H 355754429075395NoneA
116,05 zł

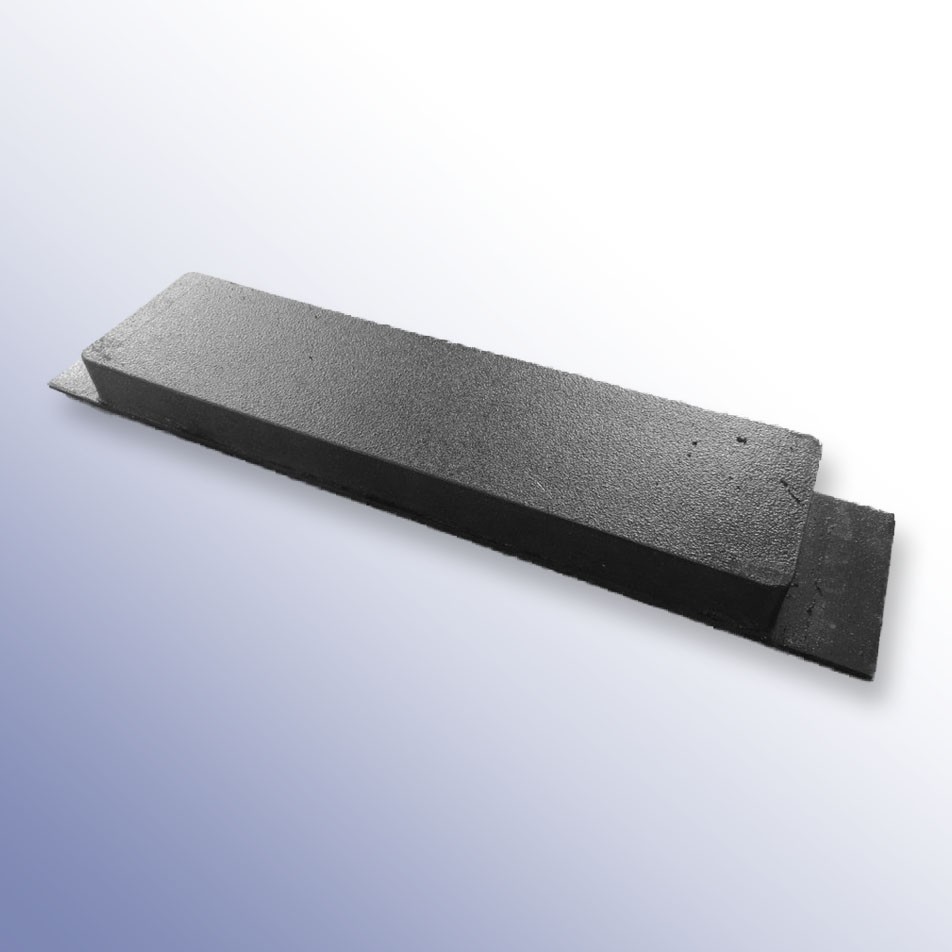

Steel Tipper Pad Coated 355L x 75W x 30H DM35575-3 Steel Tipper Pad Coated 355L x 75W x 30H 355753029074273NoneS
116,05 zł

Szczegóły

Tipper Pads are used to protect the chassis of tipper lorries. They are designed to withstand heavy and repetitive loads, protecting the bodywork of the vehicle whilst dampening excessive noise whilst tipping. Tipper pads are constructed from a thick block of rubber with an aluminium or steel base. They can be fitted to the vehicle with screws or welded directly to the metal work. There is three types of base to choose from: Aluminium, steel and a version coated in black anti-rust paint.

Informacje dodatkowe

Kolor Silver/Black
Materiał Guma Naturalna (NR)
Twardość (Shore A) Nie
Długość Wewnętrzna (mm) Nie
Rozmiar Otworu Śrubowego (mm) Nie

Further Information (File Downloads)
