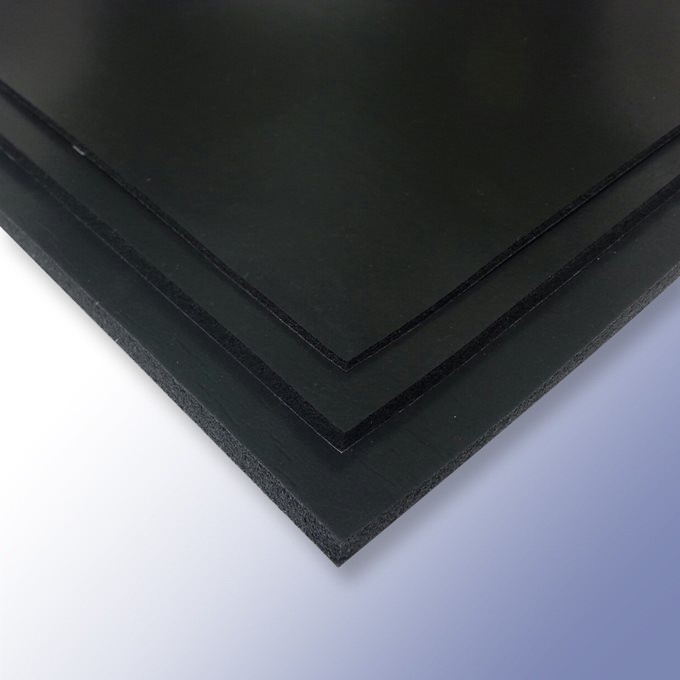

Metal Detectable Silicone Sponge Sheet

Nie dostępne w ofercie On-line. Skontaktuj się z nami po więcej szczegółów.

 22 208 4400
 biuro@polymaxpolska.pl

Oceń ten produkt jako pierwszy

Krótki opis

Metal detectable sheeting allows fragments to be found and isolated safety.

Rubber sheet tolerance allowance - width 3%, length 5%.
Sprzedawane w metrach bieżących
nr katalogowy Thickness
(mm)
Magnetic
Pull
(mm)
3044253 1.505.7
3044254 2.005.7
3044255 3.005.7
3044256 4.005.7
3044257 5.005.7
3044258 6.005.7
3044259 7.005.7
3044260 8.005.7
3044261 9.005.7
3044262 10.005.7
3044307 11.005.7
3044263 12.005.7
3044264 13.005.7
3044265 14.005.7
3044266 15.005.7
3044308 16.005.7
3044309 17.005.7
3044310 18.005.7
3044311 19.005.7
3044267 20.005.7
3044312 21.005.7
3044313 22.005.7
3044314 23.005.7
3044315 24.005.7
3044268 25.005.7
3044316 26.005.7
3044317 27.005.7
3044318 28.005.7
3044269 29.005.7
3044319 30.005.7

Szczegóły

Our long-lasting metal detectable silicone rubber sheet comes in a hardness of 60° shore A. Fully compliant to industry standards, metal detectable sheeting allows fragments of failed seals to be found and isolated safely. Popular in the food processing and pharmaceutical industries, the superior flexibility, elasticity and heat resistance make this the only choice for when extra care is needed.

This rubber sheeting is available with pressure sensitive adhesive backing. Polymax also provide a fabrication service to create gaskets or strips - please call us for more information.

Informacje dodatkowe

Kolor Czarny
Materiał Silikon (VMQ)
Długość Rolki (m) 2000
Szerokość (mm) 1000.00
Grubość (mm) Nie
Tolerancja (±mm) Nie
Sell by the metre Tak
Twardość (Shore A) 12
Temperatura Maksymalna (°C) 230.00
Temperatura Minimalna (°C) -60.00
Density (kg/m³) Nie
Gęstość (g/cm³) 0.32
Wytrzymałość Na Rozciąganie (MPa) 1.47
Wydłużenie Przy Zerwaniu (%) 214.00
Ścieralność (mm³) (DIN53516) Nie
Bezpieczne Napięcie Podczas Pracy (V) Nie
Testowane Napięcie Do (V) Nie
Ilość Wkładek Wzmacniających Nie
Cechy Produktu Nie
Odkształcenia Trwałe Po Ucisku (%) 5.00
Parametry Testu Odkształceń Trwałych Po Ucisku 22h @ 70
